120T/H LB1200 Factory Price Asphalt Batching Plant Fast Installation

Sertifikasi
Cina Nanyang Xinda Electro-Mechanical Co., Ltd. Sertifikasi
Cina Nanyang Xinda Electro-Mechanical Co., Ltd. Sertifikasi
I 'm Online Chat Now

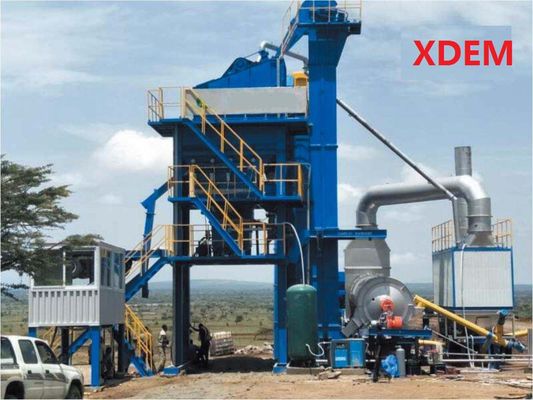

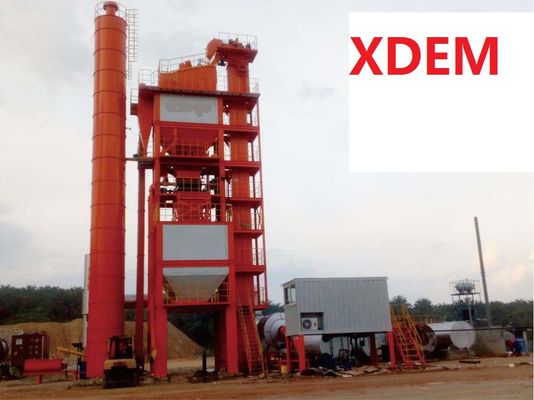

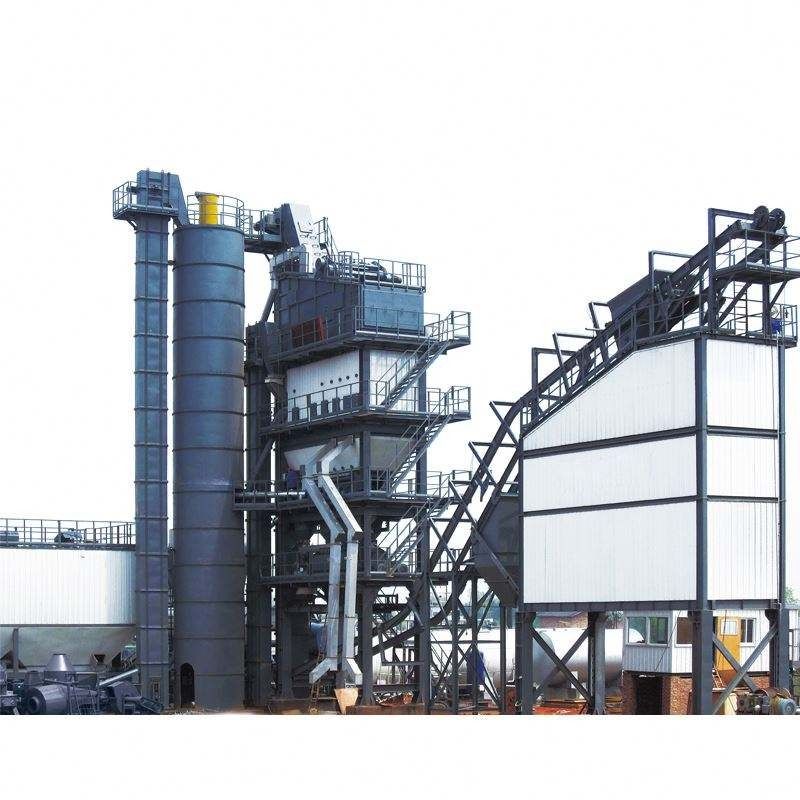

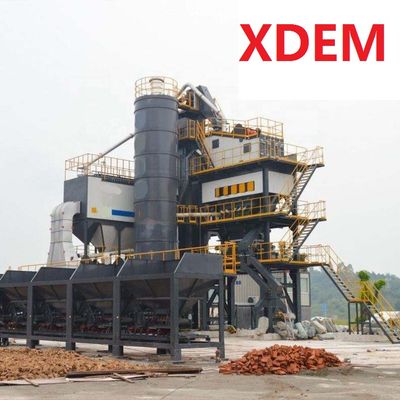

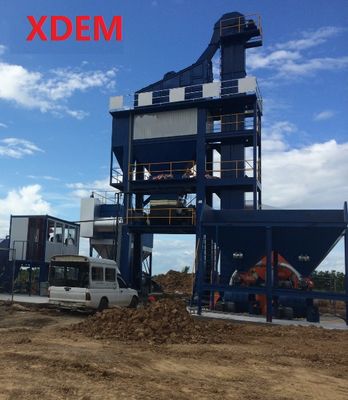

120T/H LB1200 Factory Price Asphalt Batching Plant Fast Installation

120T/H LB1200 Factory Price Asphalt Batching Plant  Fast Installation

Gambar besar :  120T/H LB1200 Factory Price Asphalt Batching Plant Fast Installation

Detail produk:
Tempat asal: Cina
Nama merek: XDEM
Sertifikasi: CE ISO
Nomor model: LB1200
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: USD125000
Kemasan rincian: Telanjang
Waktu pengiriman: 45 hari kerja
Menyediakan kemampuan: 500 set per bulan
Detil Deskripsi produk
Model: LB1200 Rated capacity: 120t/h
Burner: Oil burner Oil Consumption: 6.5kg/t
Mixer capacity: 1100kg/batch Total power: 215.26KW
Menyoroti:

LB1200 asphalt Batching Plant

,

120T/h asphalt Batching Plant

,

XDEM asphalt Batching Plant

XDEM 120T/h LB1200 Factory Price Asphalt Batching Plant Manufacturers in China

120T/H LB1200 Factory Price Asphalt Batching Plant  Fast Installation 0

LB1200 Asphalt Batching Plant -120Ton/h

  • Modular cold aggregate feeding system which can synchronization proportional control and adjust automaticly
  • Energy-efficient dry heating systems whose heat exchange efficiency reach 90%
  • High-strength plate chain bucket elevator system with 0 db mute backstop
  • Quick changing and maintenance-free screening system with smart air lead and pressure relief
  • High precision weighing system with good stability and automatically error compensation
  • High efficiency and large-circulation stereo boiling mixing system with 15% overcapacity redundant design
  • Efficient and environmentally friendly bag filter system with emissions Far exceeding the national standards
  • Stackedfiller silo with customized items available, reclaimed filler re-using system
  • Asphalt supply system with easy and flexible combination and fast installation
  • High reliability air system which can continuous working in extreme environment with -15℃-50℃
    Stable and easy operation PC+PLC smart control system with independent intellectual property rights

Asphalt Batching Plant



Technical Specification LB1200
Rated capacity 120t/h
Cold hopper quantity 4
Cold hopper volume 8m³
Standard burner Oil burner
Oil Consumption 12kg/t
Screen 4layers
Mixer capacity 1600kg/batch
Powder temporary storage capacity 1.8m³
New filler silo
Old filler silo
Finished warehouse capacity optional
Asphalt tank 2×50 m³
Heavy oil tanks
Light oil tanks
hot oil stove 5X104
The total installedpower 391.72kW
Dimension 35m×31m×15m

120T/H LB1200 Factory Price Asphalt Batching Plant  Fast Installation 1





About our company

Our company is one of the leading companies in asphalt and concrete equipment technology, support and service in China.

Our complete product lines include:
Stationary asphalt mixing plant / mobile asphalt mixing plant / continuous asphalt mixing plant/ concrete mixing plant / mobile concrete mixing plant / concrete mixer / coal burner / other accessories.

Our factory is located in the center of Henan Province, covering an area of more than 106,000 square meters of the office space.

Founded in 2002, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plants and concrete mixing plants have been used in highways, high-grade highways, urban roads and airport construction and got a high reputation for their excellent performance.

Today we hold 18 patents, which owns to the concerted efforts of our employees including R&D team, marketing team and production & procurement team.

Our asphalt plants and concrete plants have got CE, GOST and ISO9001 certifications.

Along with the high-quality products and genuine spare parts, we focus on providing better services. Now, we have a professional service group for our global customers. We dispatch our service personnel all over the world to help set-up asphalt or concrete plants and train operators.

We will continue to strive for new technology and better solutions, while serving our customers with first-class products and excellent services.
