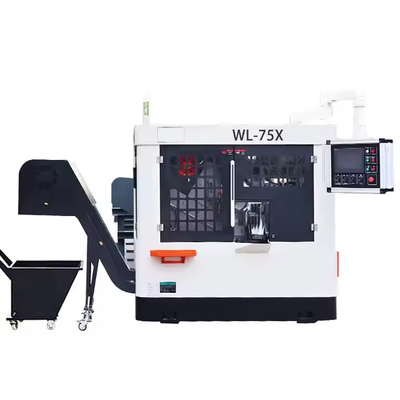

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

Semua produk
Traktor Pertanian Pertanian (46)
Perlengkapan Traktor Pertanian (22)
Suku Cadang Mesin Traktor (15)
Mesin Bor Garis Portabel (46)
Teknik Struktur Baja (13)
Mesin Penggalian Bumi (51)
mesin bor sumur (29)
Mesin Logistik (33)
tungku suhu tinggi (35)
Mesin Konstruksi Jalan (100)
Kendaraan Khusus (44)
penangkal gelombang petir (20)
Tekstil Sutra (138)
Peralatan pupuk organik (42)
mesin pemanggang kopi (25)
Sepeda Motor Tiga Roda (3)
Sertifikasi
Cina Nanyang Xinda Electro-Mechanical Co., Ltd. Sertifikasi
Cina Nanyang Xinda Electro-Mechanical Co., Ltd. Sertifikasi
I 'm Online Chat Now

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding
XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

Gambar besar :  XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

Detail produk:
Tempat asal: Henan, Cina
Nama merek: XDEM
Sertifikasi: CE
Nomor model: WL-75X / WL-90X / WL-120X / WL-150X / WL-260P / WL-300P
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: US$23800 1Set
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: T/t, l/c
Menyediakan kemampuan: 100 set per bulan
Kontak
Detil Deskripsi produk
Poin Jual Kunci: Presisi Komponen inti: PLC, Mesin, Bantalan, Gearbox, Bejana Tekanan, Motor, Roda Gigi
Laporan Tes Mesin: Asalkan Jaminan: 1 tahun
Inspeksi keluar video: Asalkan Voltase: 380v
Kekuatan Dinilai: 12.4 Berat (kg): 4200
Dimensi (l*w*h): 7500x2900x2100 mm Diameter Mata Gergaji: 250 -285 mm t2.0
Spindle sajian motor: 7,5 kW Kecepatan spindel: 20-160 rpm
Panjang pakan tunggal: 10-800 mm Panjang makan yang diijinkan: 2000-6000
Rentang tekanan: 7 MPa

Product Information

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 0

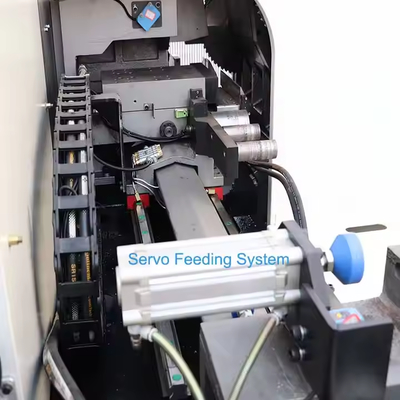

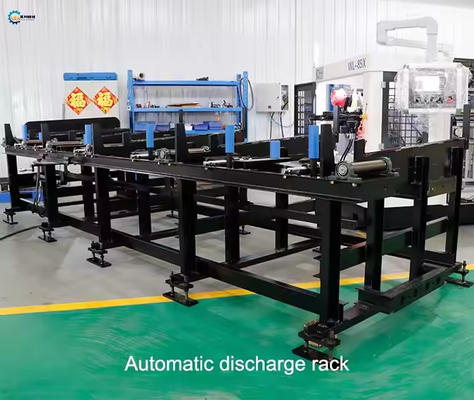

This machine is a fully automatic high speed metal circular saw machine, it specially designed for cutting round solid rods and square solid rods, according to customer’s requirements for high speed cutting and high precision cutting. Fully automatic Precision Circular Saw Machine is built with a PLC-controlled automation system. Made from high-quality raw materials, our machine provides precision and in-depth sawing with its Ceramic saw blades and stainless steel blades, increasing productivity while reducing labor. The Machine consists of a Spindle Box, Mitsubishi Servo Motor, Servo Feeding System, Discharge Device, Hydraulic Clamping, Oil Mist System, Feeding Rack and so on. It can cut all kinds of Metal Materials.

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 1XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 2XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 3XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 4XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 5XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 6XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 7XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 8

Parameters



Machine Model WL-75X WL-90X WL-120X WL-150X WL-260P WL-300P
Sawing Capacity Bar(mm) 12--75 12--90 20--120 40--150 120--260 160--300
Square Materials(mm) 12--45 12--70 20--80 40--105 120--195 160--220
Round Tube(mm) 12--75 12--90 20--120 40--150 120--260 160--300
Square Tube(mm) 12--45 12--70 20--80 40--105 120--195 160--220
Head Spindle Saw Blade Diameter (mm) 250-285 t2.0 315 t2.25 380 t2.6 460 t2.7 840 t4.0 840 t4.0
Spindle Speed(rpm) 20--160 20--150 20--120 20--70 15-40 15-40
Spindle Servo Motor(KW) 7.5 11 11 15 45 45
Feeding Clamps Single Feed Length(mm) 10--800 10--800 10--800 10--800 10--800 10-800(mm)
Hydraulic Device Hydraulic Drive Motor(KW) 2.25(4P) 2.25(4P) 3.75(4P) 3.75(4P) 5.5(4P) 5.5(4P)
Pressure Range (MPa) 7 7 7 7 7 7
Hydraulic Oil Capacity (L) 90 70 110 120 160 170
Size and Weight Weight: Machine and Rack (KG) 4200 4000 6000 6700 12600 13000
Size (mm)

7500X2900

X2100

7500X2900

X2000

7700X3200

X2250

7700X3400

X2250

8300X4150

X2570

9120X4400

X2605
